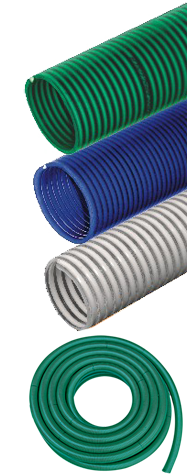

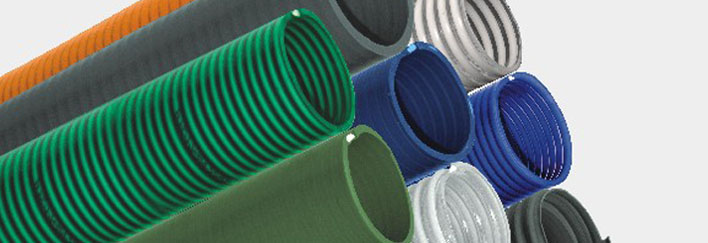

Pvc Suction & Discharge Hose

Sumoflex - Light Duty Suction Hose
SIZE	Wall Thickness MM	Working Pressure kg/cm2	Brusting Pressure kg/cm2
3/4"	1.6	5.2	17
1"	1.7	5.2	17
1.25"	1.9	4.9	15
1.5"	2.0	4.1	13
2"	2.1	3	12
2.5"	2.9	3	12
3"	3.2	2.9	11
4"	4.0	2.9	11
5"	5.5	2	8
6"	6.0	2	8

• Delivery and Normal suction of Water
• Delivery of saline water, light acids and also uses as portable water supply

GOPIFLEX - MEDIUM DUTY SUCTION HOSE
SIZE	Wall Thickness MM	Working Pressure kg/cm2	Brusting Pressure kg/cm2
3/4"	1.7	5.5	18
1"	1.8	5.5	18
1.25"	2.0	5	16
1.5"	2.2	4.5	14
2"	2.6	3.5	13
2.5"	3.0	3.5	13
3"	3.6	3	12
4"	4.8	3	10
5"	5.5	2	8
6"	6.3	2	8
8"	9.0	2	8

• General used with electrical Monoblock and oil or diesel engines. All types of water distribution in irrigation and agriculture.Suction & Delivery of Saline water, Light acids, alkalies & other light chemicals.
• Conveying of Raw materials in form of Granules & fines in process industires.

AQUAFLEX - HEAVY DUTY SUCTION HOSE
SIZE	Wall Thickness MM	Working Pressure kg/cm2	Brusting Pressure kg/cm2
3/4"	2.2	7	24
1"	2.2	7	23
1.25"	2.3	6	19
1.5"	2.5	4.8	15
2"	3.0	3.8	14
2.5"	3.5	3.8	14
3"	3.9	3.2	13
4"	5.0	3.2	13
5"	6.0	2.5	9
6"	6.5	2.5	9
8"	9.0	2.5	9
10"	12.0	2	8
12"	15.0	1.5	6

• General pumping & suction application in agriculture industry & construction. Widly used with elctrical mono block pumps and oil or diesel engines.
• Suction and delivery of saline water, ligt acids , Alkalies & other chemicals . Conveyence of waste, sludge, slurry and other waste.

FINEFLEX - SUPER HEAVY DUTY SUCTION HOSE
SIZE	Wall Thickness MM	Working Pressure kg/cm2	Brusting Pressure kg/cm2
3/4"	2.3	7	24
1"	2.3	7	23
1.25"	2.5	6.5	20
1.5"	2.6	5	16
2"	3.5	4	16
2.5"	4.2	4	16
3"	4.4	3.5	15
4"	5.5	3.5	11
5"	6.0	2.5	9
6"	7.0	2.5	9
8"	10.0	2.5	9
10"	15.0	2	8
12"	18.0	1.5	6

• All types of water distribution in Irrigation & agriculture. Mainly used with electrical mono block and oil or diesel engines. Conveying of Raw materials in form of granuels & fines in process industries. Suction and delivery of Saline water, Light acids, alkalies & other chemicals and all other General purpose applications. Compare to Rubber suction and delivery hoses, it is the best alternative in terms of efficiency and service life.also uses in fishries and shipping industires. Suction and discharge of mud and mud water

OLIVE GREEN SUCTION HOSE HEAVY DUTY
SIZE	Wall Thickness MM	Working Pressure kg/cm2	Brusting Pressure kg/cm2
1"	3.0	8	25
1.25"	3.2	7	21
1.5"	4.0	5.5	18
2"	4.8	4.5	18
2.5"	5.0	4.5	18
3"	5.5	4.5	18
4"	6.5	4	14
6"	6.8	2.5	9
8"	10.0	2.5	9
10"	15.0	2	8
12"	18.0	1.5	6

• Vigorous suction and & delivery application Industry, Civil Engineering & mining construction, Conveying of Raw material in form of granuels & fines in process Industries.
• Suction and delivery of saline water, light acids , Alkalies & other chemicals . Conveyence of waste, sludge, slurry and other waste.
• also uses in fishries and shipping industires.

GREY SUCTION HOSE - HEAVY DUTY
SIZE	Wall Thickness MM	Working Pressure kg/cm2	Brusting Pressure kg/cm2
3/4"	3.0	10	30
1"	3.0	8	25
1.25"	3.5	7	21
1.5"	4.1	5.5	18
2"	5.0	4.5	18
2.5"	5.5	4.5	18
3"	5.5	4.5	18
4"	6.5	4	14
5"	7.0	3	10
6"	8.5	2.5	9
8"	10.6	2.5	9
10"	15.0	2	8
12"	18.0	1.5	6

• Vigorous suction & delivery applications in coal and mineral mines, Stone & lime quarries, Heavy Engineering, Constructional Engineering, Aqua culture, Shipping , Sewage disposal,discharge of concrete, Cement industies, Chemcial and petrochemical indusctires, Paper Mills , Fire fighting equipments etc.

BLUE OIL HOSE HEAVY DUTY
SIZE	Wall Thickness MM	Working Pressure kg/cm2	Brusting Pressure kg/cm2
3/4"	3.0	10	30
1"	3.0	8	25
1.25"	3.5	7	21
1.5"	4.1	5.5	18
2"	5.0	4.5	18
2.5"	5.5	4.5	18
3"	5.5	4.5	18
4"	6.5	4	14
5"	7.0	3	10
6"	8.5	2.5	9
8"	10.6	2.5	9
10"	15.0	2	8

• Conveying various fuels like diesel, kerosene , Liquid petrolium products, Lubrication oils & Transformer oil, Mineral & Light oils etc. , due to its extraordinary characteristic of oil & petroleum product resistance.

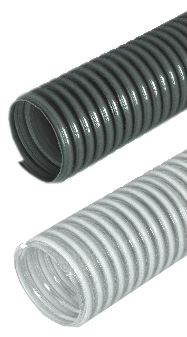

DUCT HOSE - GREY-HEAVY DUTY
SIZE	Wall Thickness MM	Working Pressure kg/cm2	Brusting Pressure kg/cm2
3/4"	3.8	3.75	20
1"	3.5	3.75	16
1.25"	3.4	3.5	13
1.5"	3.5	3.1	10
2"	3.2	2.6	8
2.5"	4.0	1.5	5
3"	3.5	1.5	4
4"	3.9	1	4.2
5"	4.1	0.7	3.5
6"	4.3	0.6	2.8
8"	5.0	0.5	2
10"	5.5	0.3	2
12"	6.0	0.25	2

• Ducting for a wide range of applications including air heaters, De-humidifiers, oil & mist etraction, Material drying, ventilation, space heaters, cabling etc. in industries, mines and domestic places.
• Ducting for a wide range of abrasive resistant solutions such as grain handling, plastic granules, street cleaning, food ingredients and wood chipping.
• Collection of fibre waste, saw dust and dust of metal grinders, Transportation of powders, Gases and liquids.

GIRT HOSE -CLEAR
SIZE	Wall Thickness MM soft total		Working Pressure kg/cm2	Brusting Pressure kg/cm2
2"	4.0	7	4.5	18
2.5"	4.5	7	4.5	18
3"	5.0	8	4.5	18
4"	6.0	10	4	14
6"	8.0	12	2.5	9

• All general Conveying and handling applications in chemical, Mining & automobile industries, Shipping & for sand blast proceedure.
• General dust collection, vacuum applications, dust extraction processes.

for above all suction & discharge hoses: recommended maximum working temperature: 60 degree c

• for small sizes upto 2" +/- 0.5mm
• for big sizes upto 6" +/- 1.0mm
• above 6" +/- 2mm

100% PVC Construction.
Can be used at most awkward curves & bends without any stiffiness. Meticulous spiral reinforcement made from rigid Pvc in soft Pvc wall ensures high impact, crushing & kinking resistance as well great flexibility.

• Multi purpose suction & Delivery of water
• Diesel oil, Mineral oil, Light chemicals conveying
• Construction Mining
• Light application for oil suction
• Light dredge suction, moderate vacuum service,
• General suction
• Dust control, air-conditioning and ventilation ducting
• vacuum and abrasive dust handling
• Industrial uses | Gardening uses
• Material handling | Grain handling
• Vapor recovery and many more...
